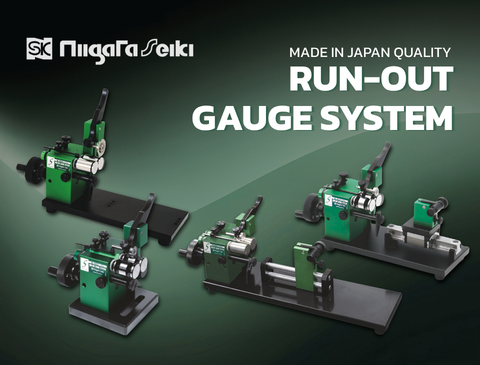

MADE IN JAPAN QUALITY RUN-OUT GAUGE SYSTEM
|
For those who handle a large number of cylindrical parts (small diameter) For those who use V-Blocks For those with variability in measurement by workers |
 |
If any of those apply to you, why not install our RUN OUT GAUGE SYSTEM. |
■ Easy to measure concentricity by mounting your current indicator.
■ Three base length, three rollers and three carriers (incl. no carrier type), total 21 product configurations available.
■ Up to 2μ accuracy. Highly accurate measurement is possible. *Up to 3μm accuracy when slit roller (for small diameter).
■ Smooth measurement with grip handle and timing belt & pulley operation system.
■ Carrier with angle fine adjustment for easy zero-setting of measuring instruments.
Free movement in Z-direction enables measurement at the optimum position.
■ Equipped with work retainer for holding front and rear of workpiece and to enable measurement of axial run-out.
＜Configurations＞
SPECIFICATIONS
●Accuracy
Slit/ Flat roller type: Within 2-3.5μm
*2μm = When measuring φ20mm workpiece (in-house measurements)
Slit roller type (for small diameter): Within 3-6.5μm
*3μm = When measuring φ8mm workpiece (in-house measurements)
●Operating temperature: 0～40℃
●Storage temperature: -10～50℃
●Base material: Carbon steel
●Roller material: Tool steel
●Provided with a carrying case
MEASURABLE WORK CONDITIONS
●OD Slit/ Flat roller type: φ4-30mm Slit roller (for small diameter) type: φ1-8mm
●Length: 5～80mm
●Shape: Cylindrical
●Reference portion of the workpiece must have enough length to clamp to the rollers.
*Measurement error increases at with increasing distance from rollers.
*Soft materials such as non-ferrous (aluminum) and plastics may deflect and cause measurement errors depending on the outer diameter and length.
Main rollers（lower rollers）
|

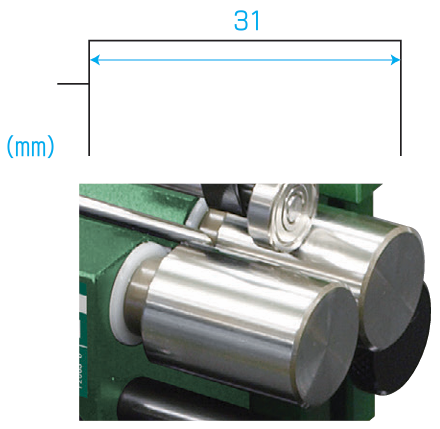

Flat roller Ideal for measuring non-flanged workpiece such as a round bar. Model No.: 103/223/353 series
|

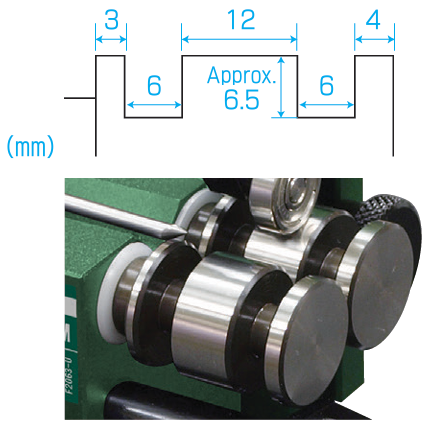

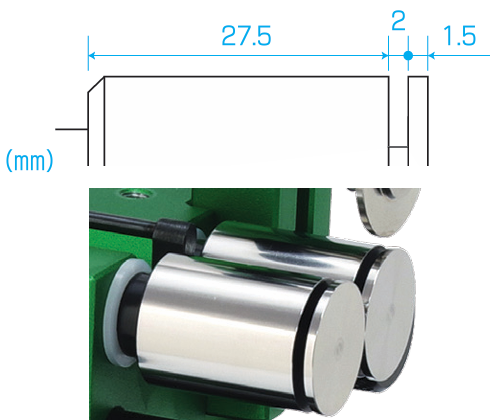

Slit roller With slits. Model No.: 101/221/351 series
|
Slit roller (for small diameter） For small diameter. Model No.: 105/225/355 series
|
| Customization of main roller possible. | |
|

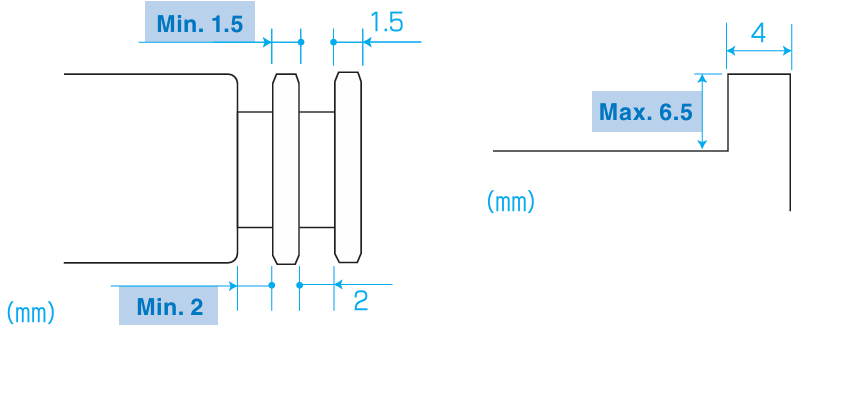

We will produce to meet your request as much as possible. *Conditions of customization |
＜Example＞
|

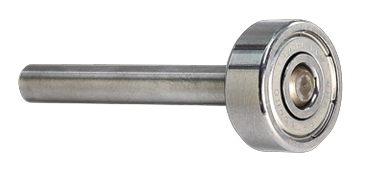

Top roller（upper roller）
|
Regular top roller Top roller for the flat/ slit main rollers.
|

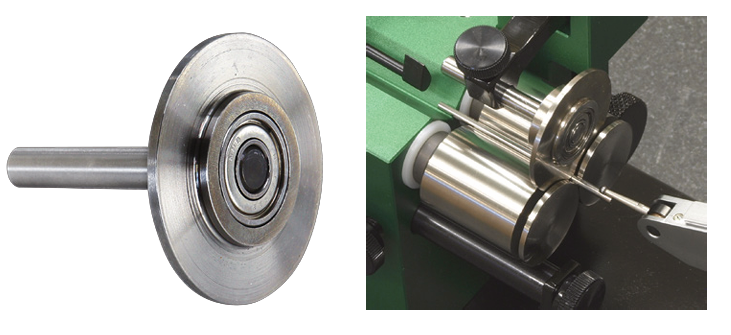

For slit main rollers (small diameter) Matching top roller of slit main rollers models (for small diameter). To be used in a narrow groove on Slit Roller (main roller).
|
| Customization of top roller possible. | |
|

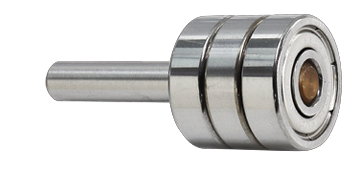

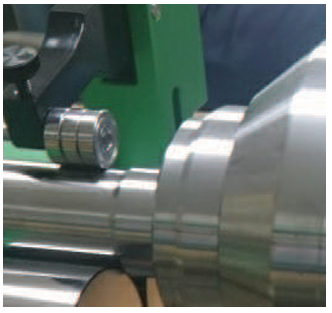

ex 1 or increasing work holding force! Triple (or double) bearing for stronger work holding force.The clamp spring can be replaced to increase the holding force.
|

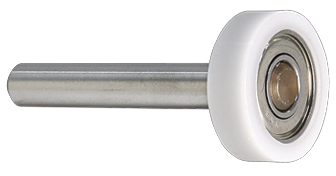

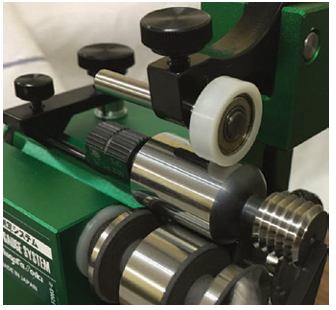

ex. 2 In case worried about scratches on the work! Can be resolved by using scratch-resistant rollers made by resin.
|
Carrier（Indicator holder）
|

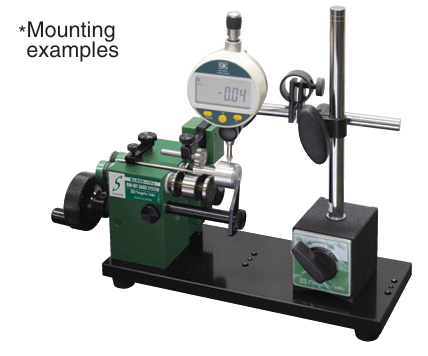

No carrier Mountable of your current magnetic base on the base of the product. Model No.: ROG-□□□S series |

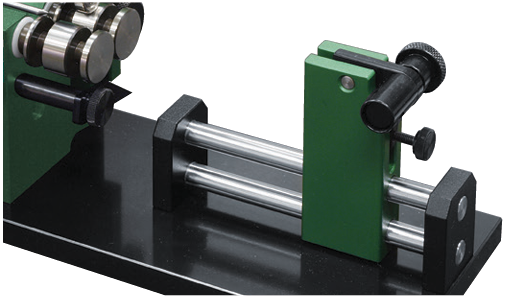

Shaft carrier Standard carrier capable of mounting a measuring device and positioning its location according to length of workpiece. Model No.: ROG-□□□SS series
|

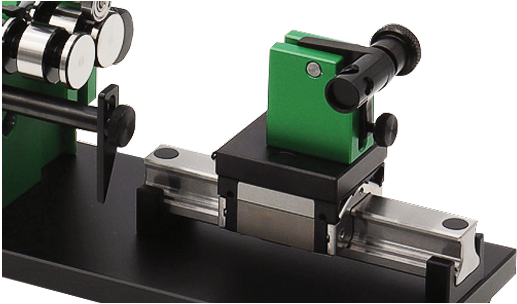

Linear carrier Linear slide carrier provides smooth movement for accurate positioning. Model No.: ROG-□□□LS series
|
Base
|

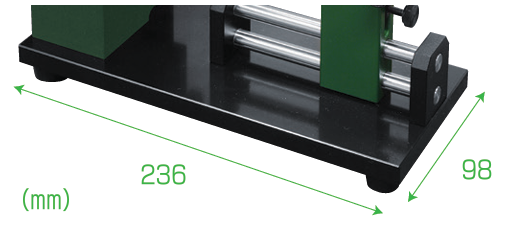

Short base Compact and space-saving size. Model No.: ROG-22□ series
|

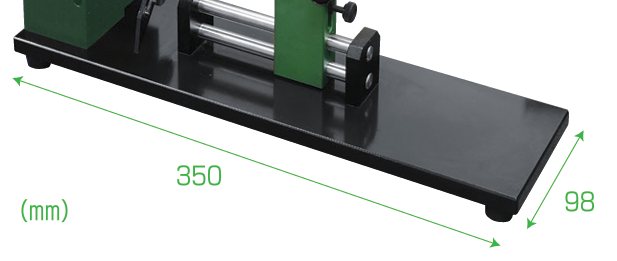

Long base The largest size in the series. Model No.: ROG-35□ series
|

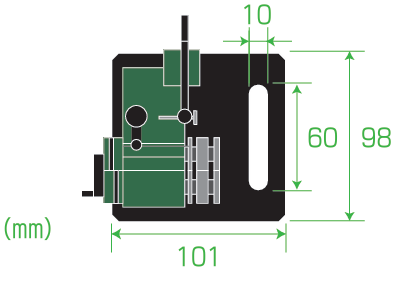

Clamp base Super-compact base with a long hole, which is suitable for placing Model No.: ROG-10□ series
|
| Example of use |
|
ex.1 Run-out measurement of outer diameter (one measuring point） ＜Tools used＞ |
ex.2 Run-out measurement of outside and inside diameter (two measuring points） ＜Tools used＞ |
ex.3 Run-out measurement of inside diameter and end surface (two measuring points） ＜Tools used＞ |
The new model for small work-diameter is newly added.
Total 21 configurations plus optional custom are
available to meet various requirements.
